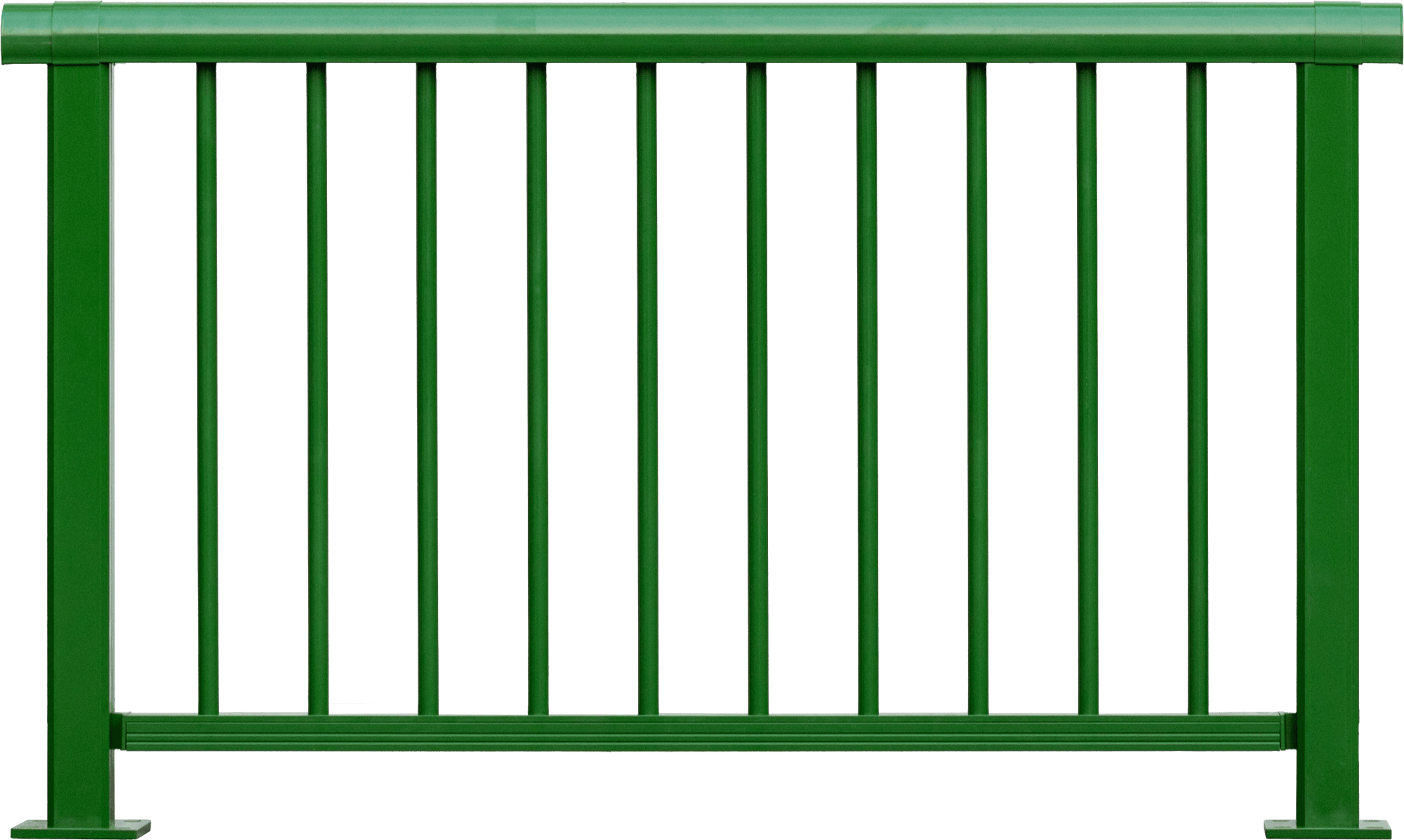

Type A
| Design Loadings | Class 3 BS 7818 (1.4kN/m Lateral load) |
| Location | Retaining Structure open drain or slope next to foothpath |
| Coating | AAMA2604.98 QUV "A" & QUV "B" Colour code: RAL 6002 Green Coating thickness: 100 micron |
| Bolts | Stainless steel holding - BS EN ISO 3506 of A4-: 70 Expansion anchor bolt: 18mm drill hole diameter & 50mm min. depth of embedment. |
| Post | Post & Vertical bar - 75mm × 75mm × 3mmT Tubular - 25mm × 25mm × 3mmT |

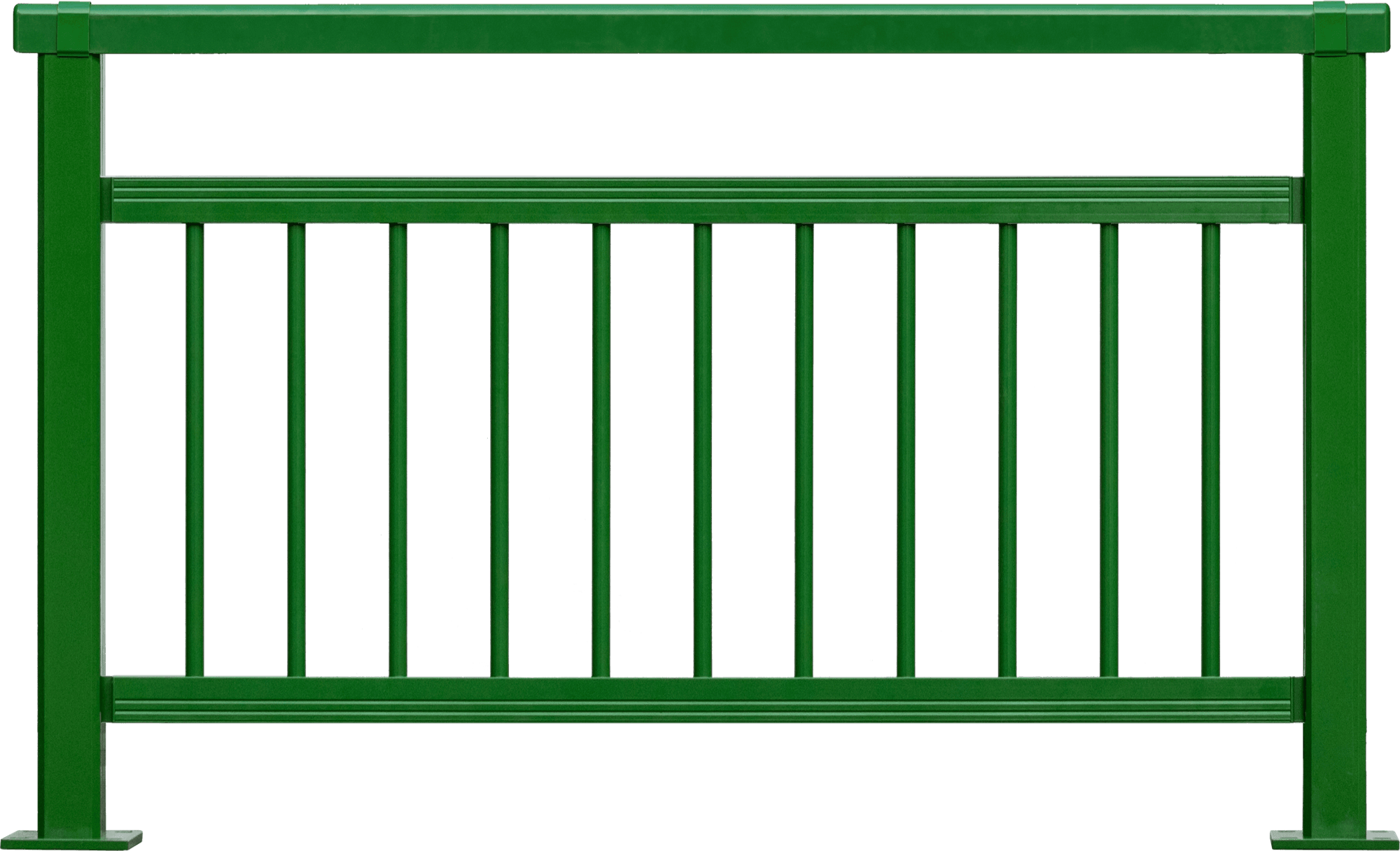

Type B
NEW
| Design Loadings | Class 3 BS 7818 (1.4kN/m Lateral load) |
| Location | Open drain, slope or level difference next to shared path/ cycling path (refer to LTA design criteria). |
| Coating | AAMA2604.98 QUV "A" & QUV "B" Colour code: RAL 6002 Green Coating thickness: 100 micron |
| Bolts | Stainless steel holding - BS EN ISO 3506 of A4-: 70 Expansion anchor bolt: 18mm drill hole diameter & 50mm min. depth of embedment. |
| Post | Post & Vertical bar - 75mm × 75mm × 6mmT Tubular - 18mm x 18mm x 5mmT |

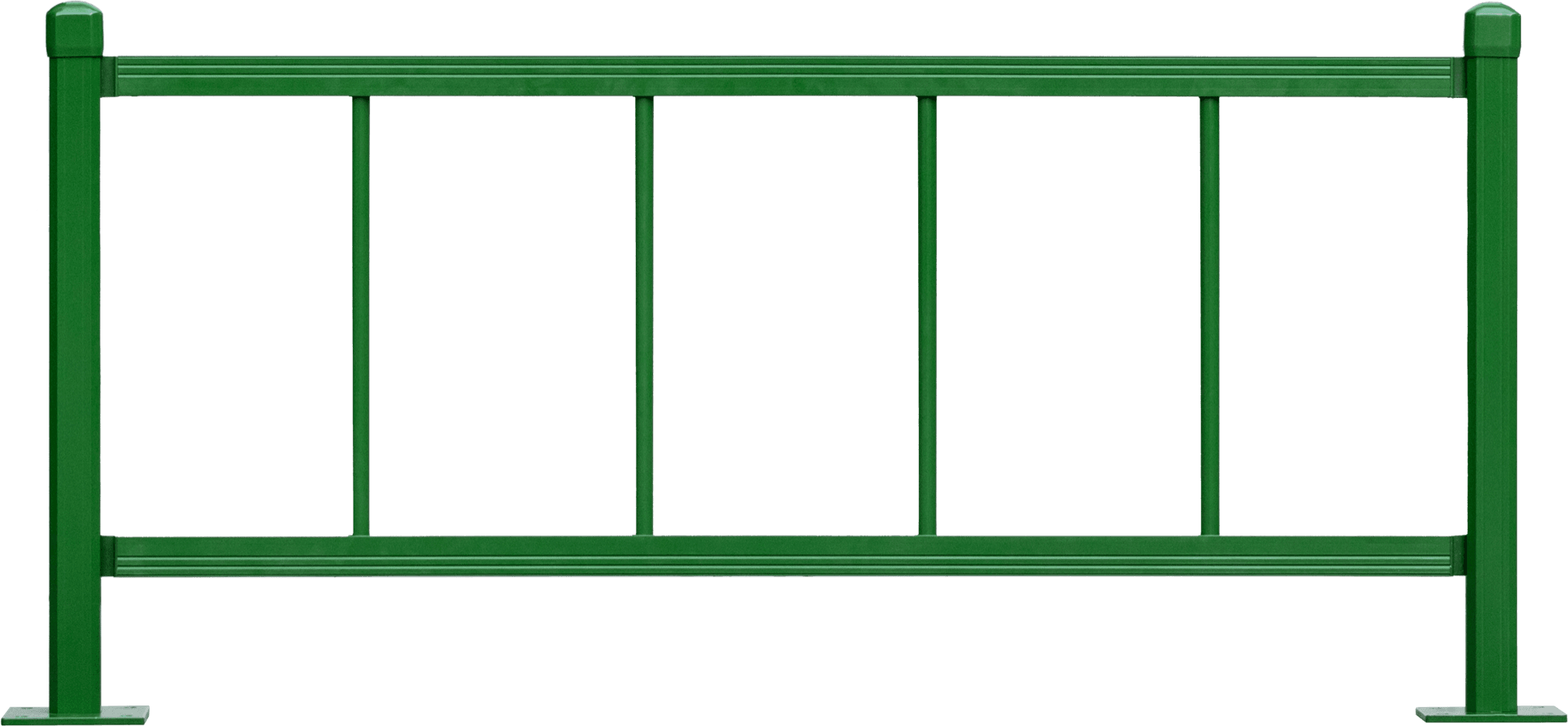

Type C
| Design Loadings | Class 1 BS 7818 (0.5kN/m Lateral Load) |
| Location | Along centre dividers and footpath adjoining carriageway, usually located at road junctions and pedestrian crossing to ensure that visibility and line of sight for drivers and pedestrians are not impaired for raod safety reasons. |
| Coating | AAMA2604.98 QUV "A" & QUV "B" Colour code: RAL 6002 Green Coating thickness: 100 micron |
| Bolts | Stainless steel holding - BS EN ISO 3506 of A4-: 70 Expansion anchor bolt: 18mm drill hole diameter & 50mm min. depth of embedment. |
| Post | Post & Vertical bar - 54mm × 54mm Tubular - 20mm × 20mm |

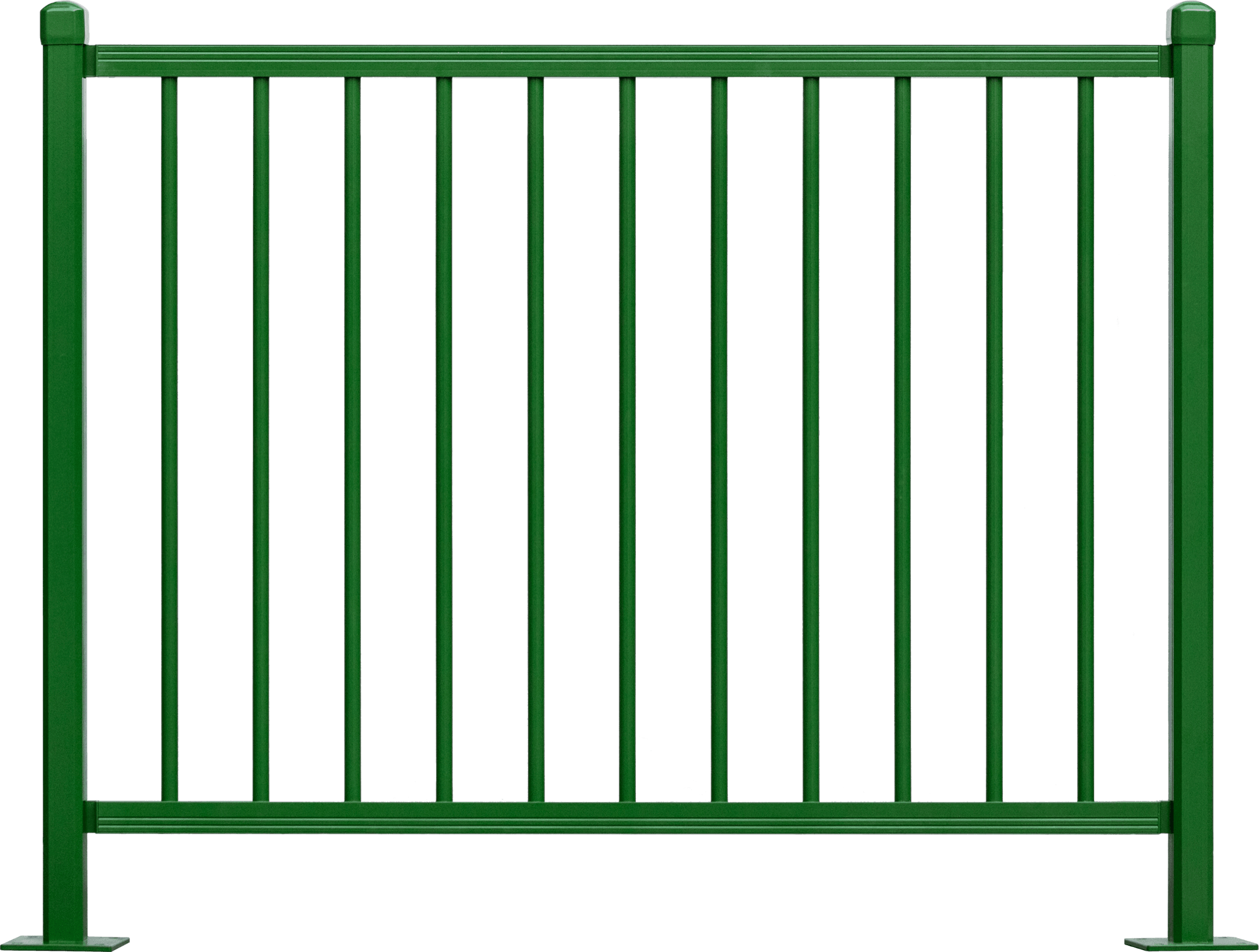

Type D
| Design Loadings | Class 1 BS 7818 (0.5kN/m Lateral Load) |
| Location | Along centre dividers and footpath adjoining carriageway. |
| Coating | AAMA2604.98 QUV "A" & QUV "B" Colour code: RAL 6002 Green Coating thickness: 100 micron |
| Bolts | Stainless steel holding - BS EN ISO 3506 of A4-: 70 Expansion anchor bolt: 18mm drill hole diameter & 50mm min. depth of embedment. |
| Post | Post & Vertical bar - 54mm × 54mm Tubular - 20mm × 20mm |

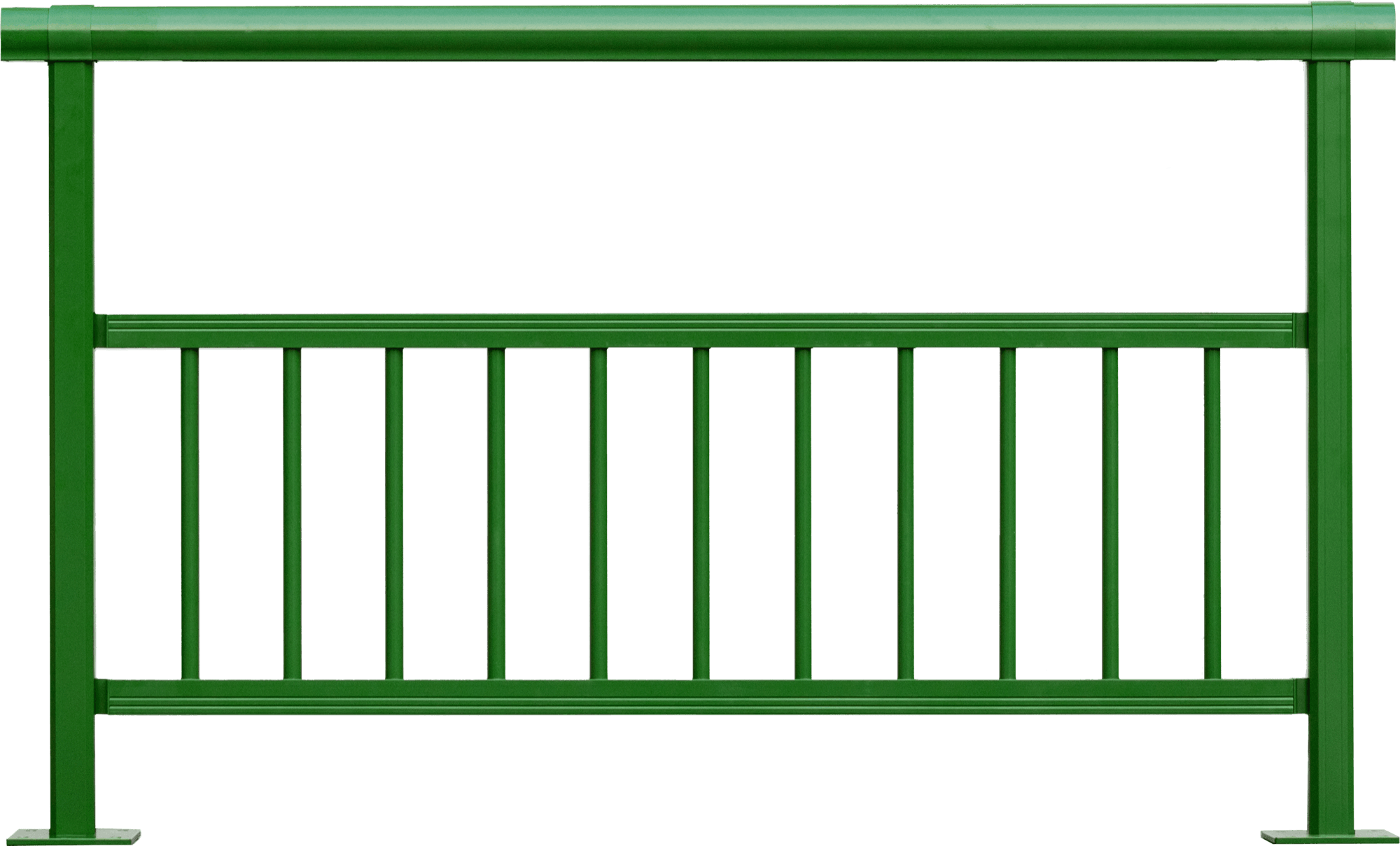

Type E
| Design Loadings | Class 1 BS 7818 (0.5kN/m Lateral Load) |
| Location | Along roadside or footpath where driver's (side road) visibility to main road is obscured. |
| Coating | AAMA2604.98 QUV "A" & QUV "B" Colour code: RAL 6002 Green Coating thickness: 100 micron |
| Bolts | Stainless steel holding - BS EN ISO 3506 of A4-: 70 Expansion anchor bolt: 18mm drill hole diameter & 50mm min. depth of embedment. |
| Post | Post & Vertical bar - 54mm × 54mm Tubular - 20mm × 20mm |

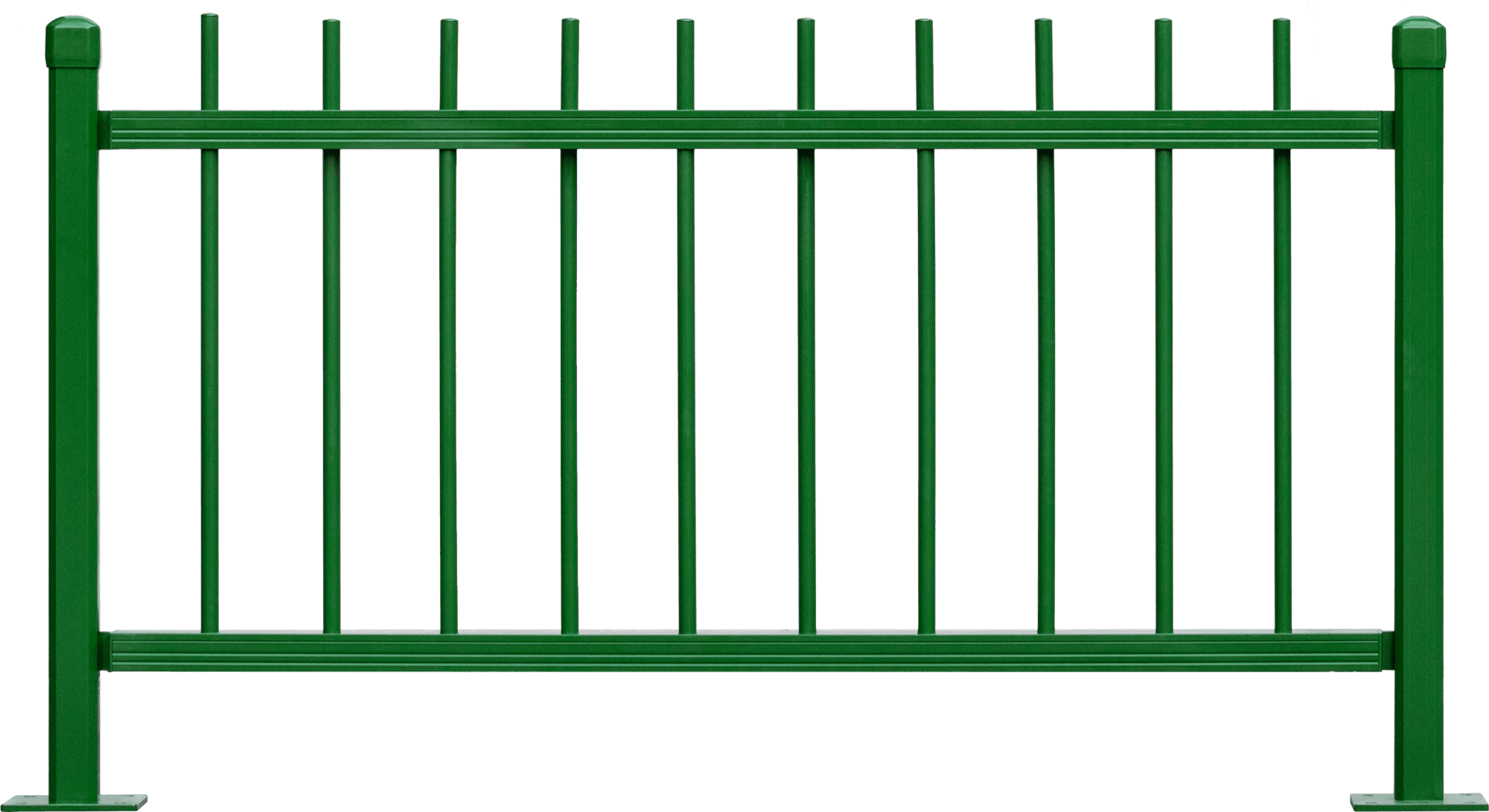

Type F
| Design Loadings | Class 1 BS 7818 (0.5kN/m Lateral Load) |
| Location | Along centre divider where driver's visibility to crossing pedestrian is obscured. |
| Coating | AAMA2604.98 QUV "A" & QUV "B" Colour code: RAL 6002 Green Coating thickness: 100 micron |
| Bolts | Stainless steel holding - BS EN ISO 3506 of A4-: 70 Expansion anchor bolt: 18mm drill hole diameter & 50mm min. depth of embedment. |
| Post | Post & Vertical bar - 54mm x 54mm Tubular - 20mm x 20mm x 1.5mmT |
